HPT 13/43 Specs.	English	Metric

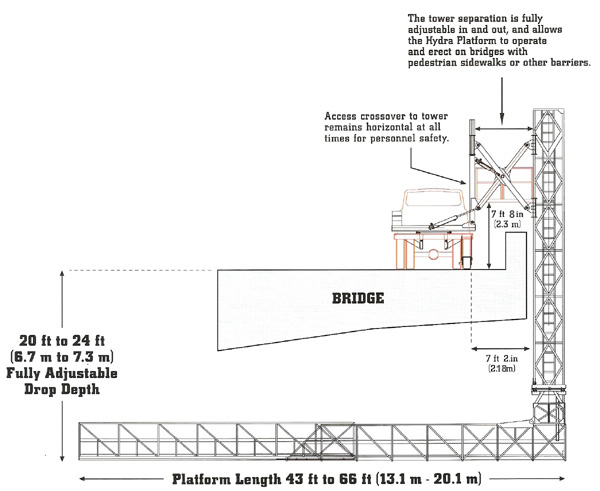

Platform Length	43 ft	13.1 m
Platform Width	3 ft 6 in	1.06 m
Platform Weight Capacity	1,400 lbs.	635 kg
Vertical Height Clearance	7 ft 2 in	2.18 m
Max. Lowering Depth	22 ft	6.7 m
Platform Rotation	180°	180°
Tower Separation Width	7 ft 8 in	2.3 m

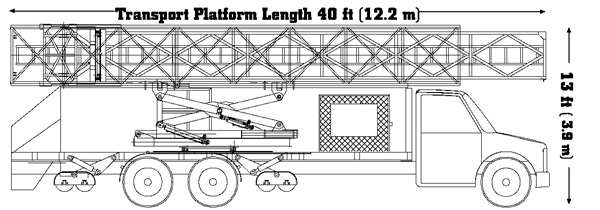

Unit Length	40 ft	12.2 m
Unit Width	8 ft 2 in	2.45 m
Unit Height (transport pos.)	13 ft	3.9 m
Total Weight (approximate)	44,000 lbs.	19,958 kg
Hydraulic Pressure	2,800 psi	2,800 psi

Four inboard hydraulic stabilizers
Self-propelled by hydrostatic drive
5-minute, self-erecting in single lane
Main hydraulic system; Truck Engine P.T.O. or Silenced Diesel generator with hydraulic pump
Auxiliary hydraulic backup system. Diesel engine with Hydraulic pump or Truck Engine P.T.O.
Towers 5° over center swing
Control panels on platform and deck
Voice communication system; platform to deck
Track Drive System for special applications
